The NSE7_SDW-7.0 exam is a certification exam for Fortinet Network Security Architect (NSE 7) – SD-WAN 7.0. It measures your knowledge and skills in designing, implementing, and managing Fortinet SD-WAN solutions. Passing this exam is a requirement to achieve the NSE 7 certification, which is a prestigious certification in the field of network security. Certspots offers tested Fortinet NSE7_SDW-7.0 dumps with a free demo to help you prepare for the exam. With their dumps, you can practice and improve your knowledge and skills in a simulated exam environment. By using Certspots’ NSE7_SDW-7.0 dumps, you can be confident in your ability to pass the exam and earn your NSE 7 certification. With their free demo, you can try out their dumps before making a purchase to ensure that they are the right fit for you. Don’t let the exam stress you out – prepare with Certspots and feel confident on exam day.

Page 1 of 2

1. Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)

update-source

set-route-tag

holdtime-timer

link-down-failover

2. Refer to the exhibits.

Exhibit A

Exhibit B

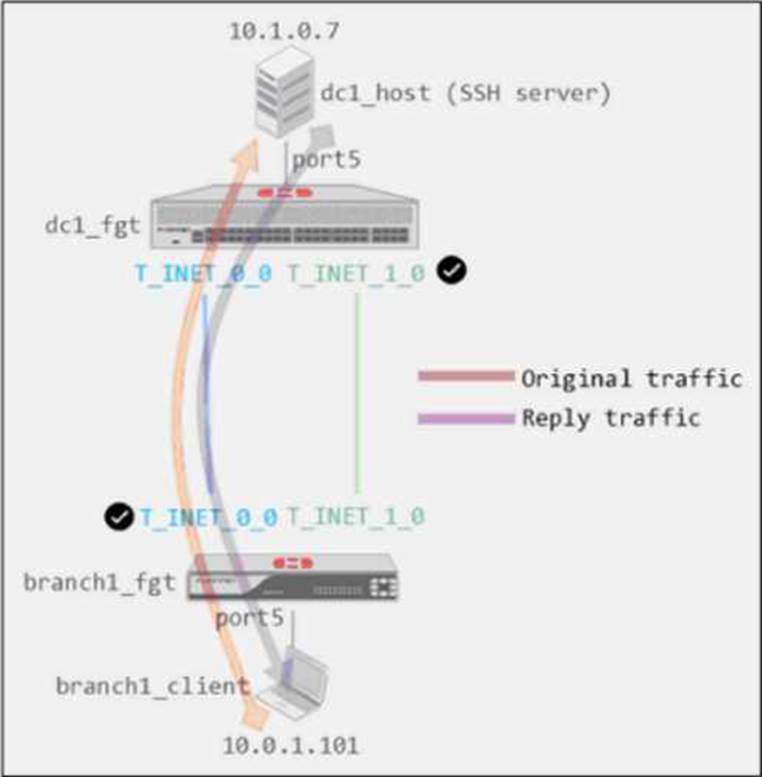

Exhibit A shows a site-to-site topology between two FortiGate devices: branch1_fgt and dc1_fgt.

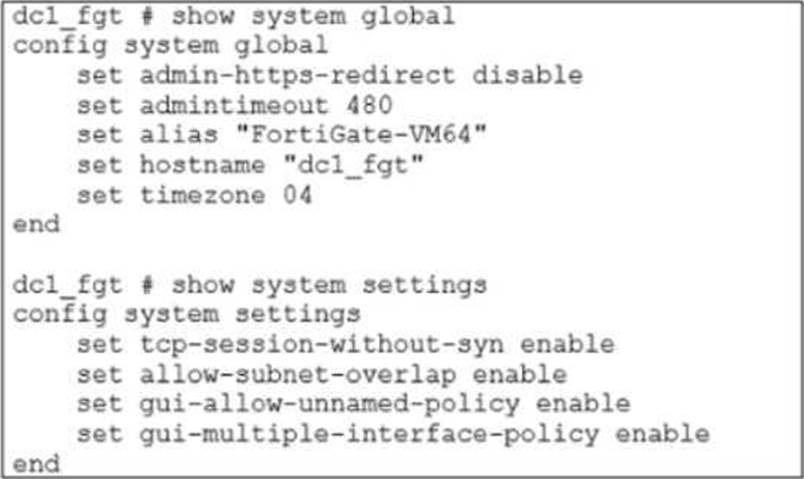

Exhibit B shows the system global and system settings configuration on dc1_fgt.

When branch1_client establishes a connection to dc1_host, the administrator observes that, on dc1_fgt, the reply traffic is routed over T_INET_0_0, even though T_INET_1_0 is the preferred member in the matching SD-WAN rule.

Based on the information shown in the exhibits, what configuration change must be made on dc1_fgt so dc1_fgt routes the reply traffic over T_INET_1_0?

Enable auxiliary-session under config system settings.

Disable tсp-session-without-syn under config system settings.

Enable snat-route-change under config system global.

Disable allow-subnet-overlap under config system settings.

3. Which CLI command do you use to perform real-time troubleshooting for ADVPN negotiation?

get router info routing-table all

diagnose debug application ike

diagnose vpn tunnel list

get ipsec tunnel list

4. 1.Which diagnostic command can you use to show the member utilization statistics measured by performance SLAs for the last 10 minutes?

diagnose sys sdwan intf-sla-log

diagnose sys sdwan health-check

diagnose sys sdwan log

diagnose sys sdwan sla-log

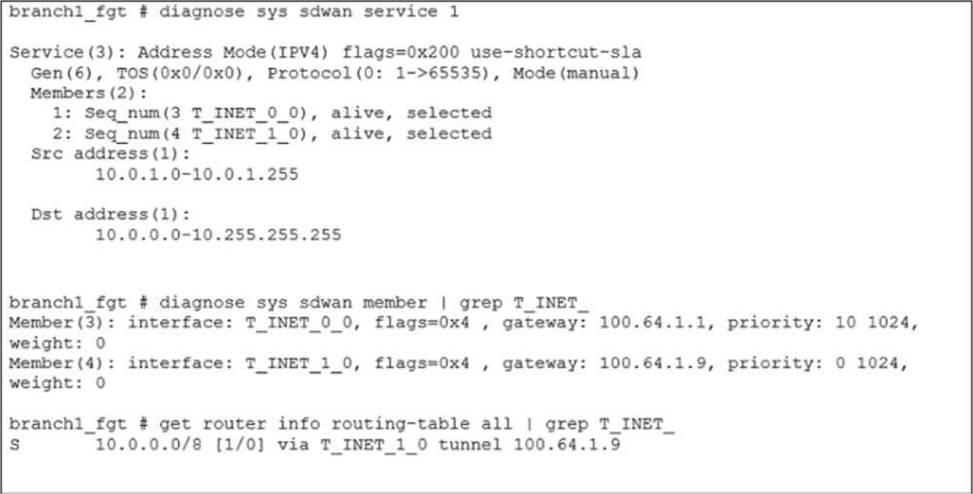

5. Refer to the exhibit.

An administrator is troubleshooting SD-WAN on FortiGate. A device behind branch1_fgt generates traffic to the 10.0.0.0/8 network. The administrator expects the traffic to match SD-WAN rule ID 1 and be routed over T_INET_0_0. However, the traffic is routed over T_INET_1_0.

Based on the output shown in the exhibit, which two reasons can cause the observed behavior? (Choose two.)

The traffic matches a regular policy route configured with T_INET_1_0 as the outgoing device.

T_INET_1_0 has a lower route priority value (higher priority) than T_INET_0_0.

T_INET_0_0 does not have a valid route to the destination.

T_INET_1_0 has a higher member configuration priority than T_INET_0_0.

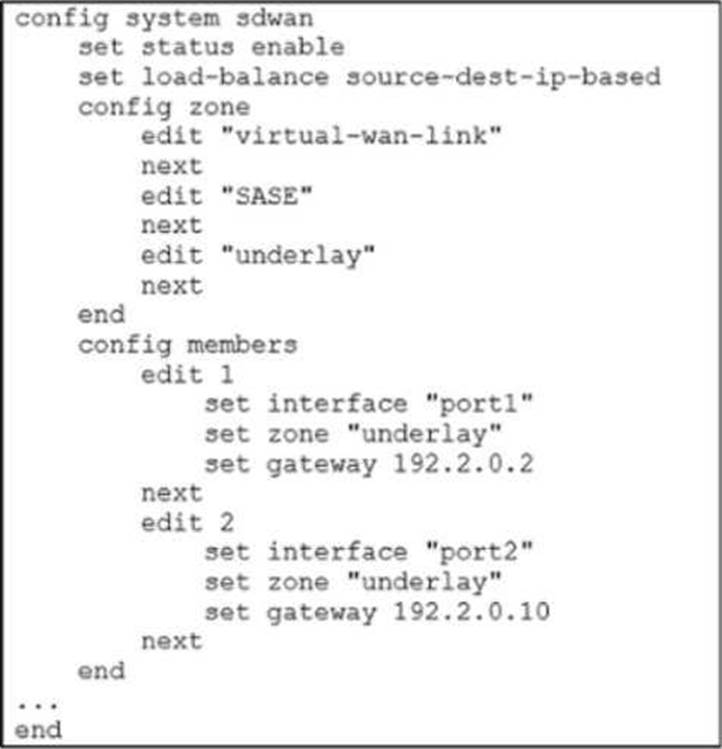

6. Refer to the exhibit.

Which algorithm does SD-WAN use to distribute traffic that does not match any of the SD-WAN rules?

All traffic from a source IP to a destination IP is sent to the same interface.

All traffic from a source IP is sent to the same interface.

All traffic from a source IP is sent to the most used interface.

All traffic from a source IP to a destination IP is sent to the least used interface.

7. In a hub-and-spoke topology, what are two advantages of enabling ADVPN on the IPsec overlays? (Choose two.)

It provides the benefits of a full-mesh topology in a hub-and-spoke network.

It provides direct connectivity between spokes by creating shortcuts.

It enables spokes to bypass the hub during shortcut negotiation.

It enables spokes to establish shortcuts to third-party gateways.

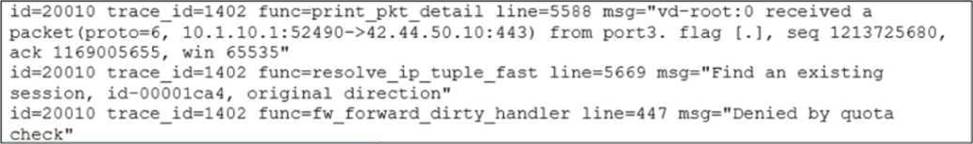

8. Exhibit.

Which conclusion about the packet debug flow output is correct?

The total number of daily sessions for 10.1.10.1 exceeded the maximum number of concurrent sessions configured in the traffic shaper, and the packet was dropped.

The packet size exceeded the outgoing interface MT

The number of concurrent sessions for 10.1.10.1 exceeded the maximum number of concurrent sessions configured in the traffic shaper, and the packet was dropped.

The number of concurrent sessions for 10.1.10.1 exceeded the maximum number of concurrent sessions configured in the firewall policy, and the packet was dropped.

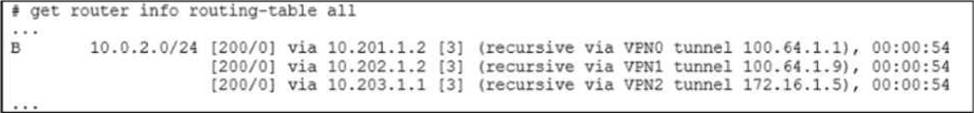

9. Refer to the exhibit.

The device exchanges routes using IBGP.

Which two statements are correct about the IBGP configuration and routing information on the device? (Choose two.)

Each BGP route is three hops away from the destination.

ibgp-multipath is disabled.

additional-path is enabled.

You can run the get router info routing-table database command to display the additional paths.

10. Which are three key routing principles in SD-WAN? (Choose three.)

FortiGate performs route lookups for new sessions only.

Regular policy routes have precedence over SD-WAN rules.

SD-WAN rules have precedence over ISDB routes.

By default, SD-WAN members are skipped if they do not have a valid route to the destination.

By default, SD-WAN rules are skipped if the best route to the destination is not an SD-WAN member.

Page 2 of 2

11. Which two statements are correct when traffic matches the implicit SD-WAN rule? (Choose two.)

The sdwan_service_id flag in the session information is 0.

All SD-WAN rules have the default setting enabled.

Traffic does not match any of the entries in the policy route table.

Traffic is load balanced using the algorithm set for the v4-ecmp-mode setting.
